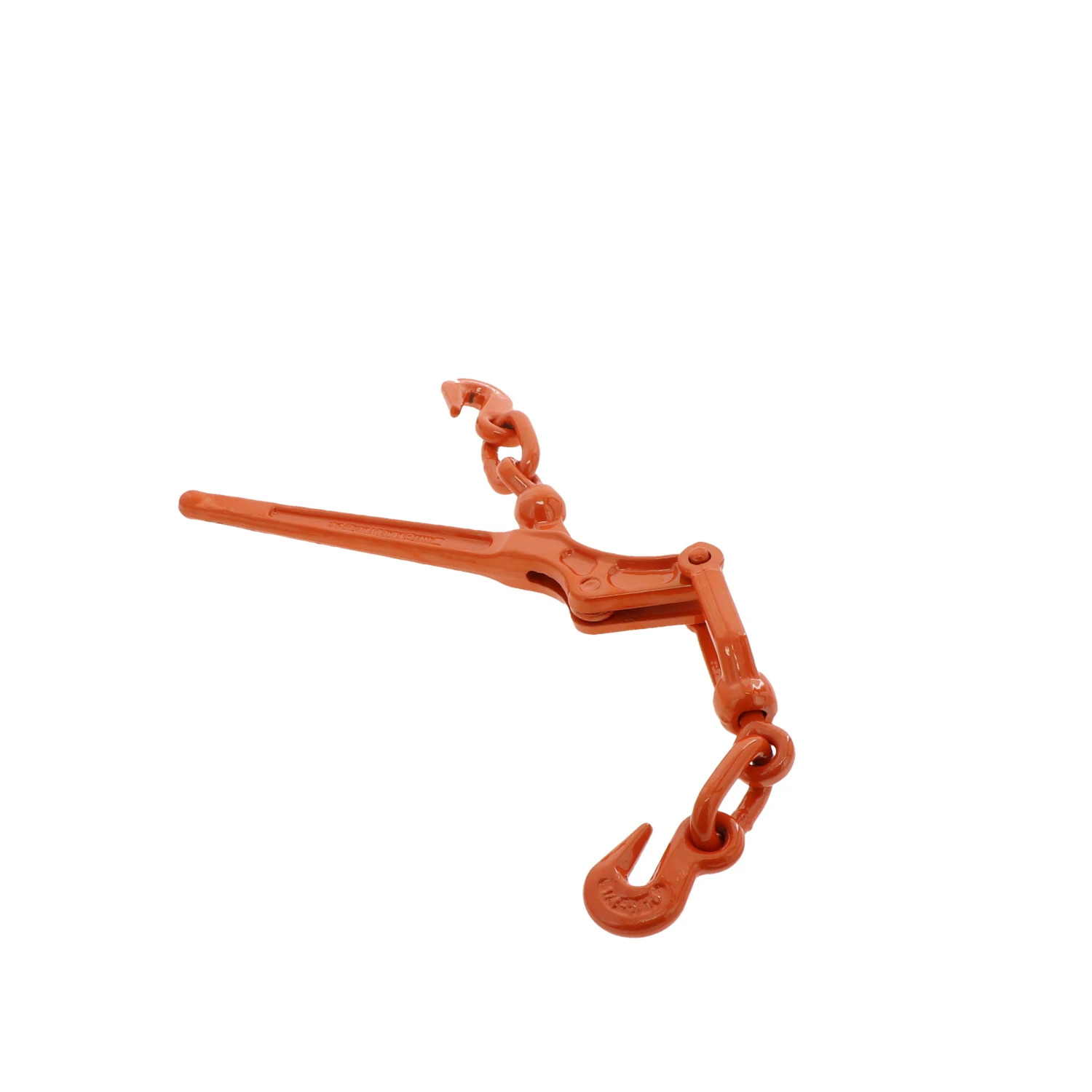

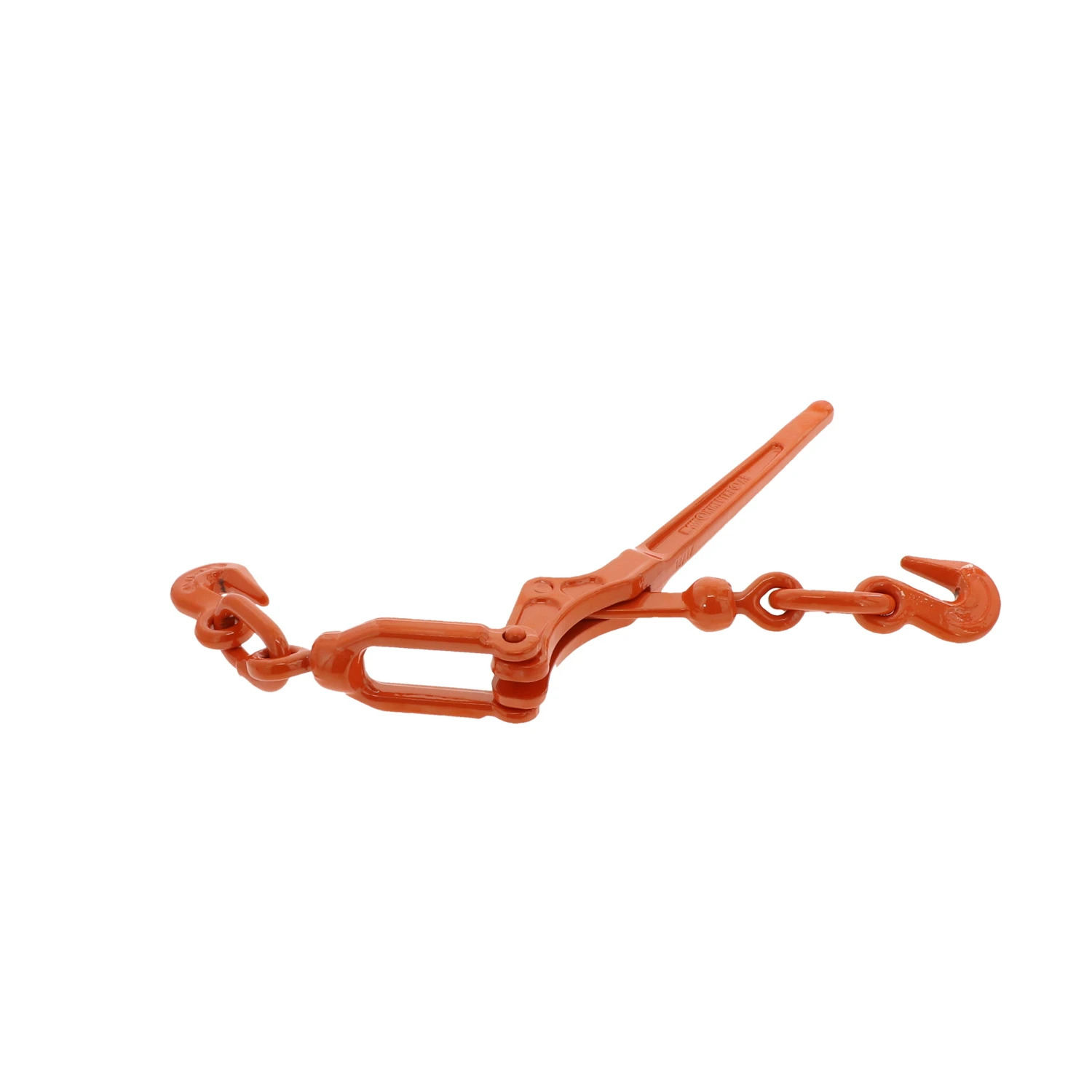

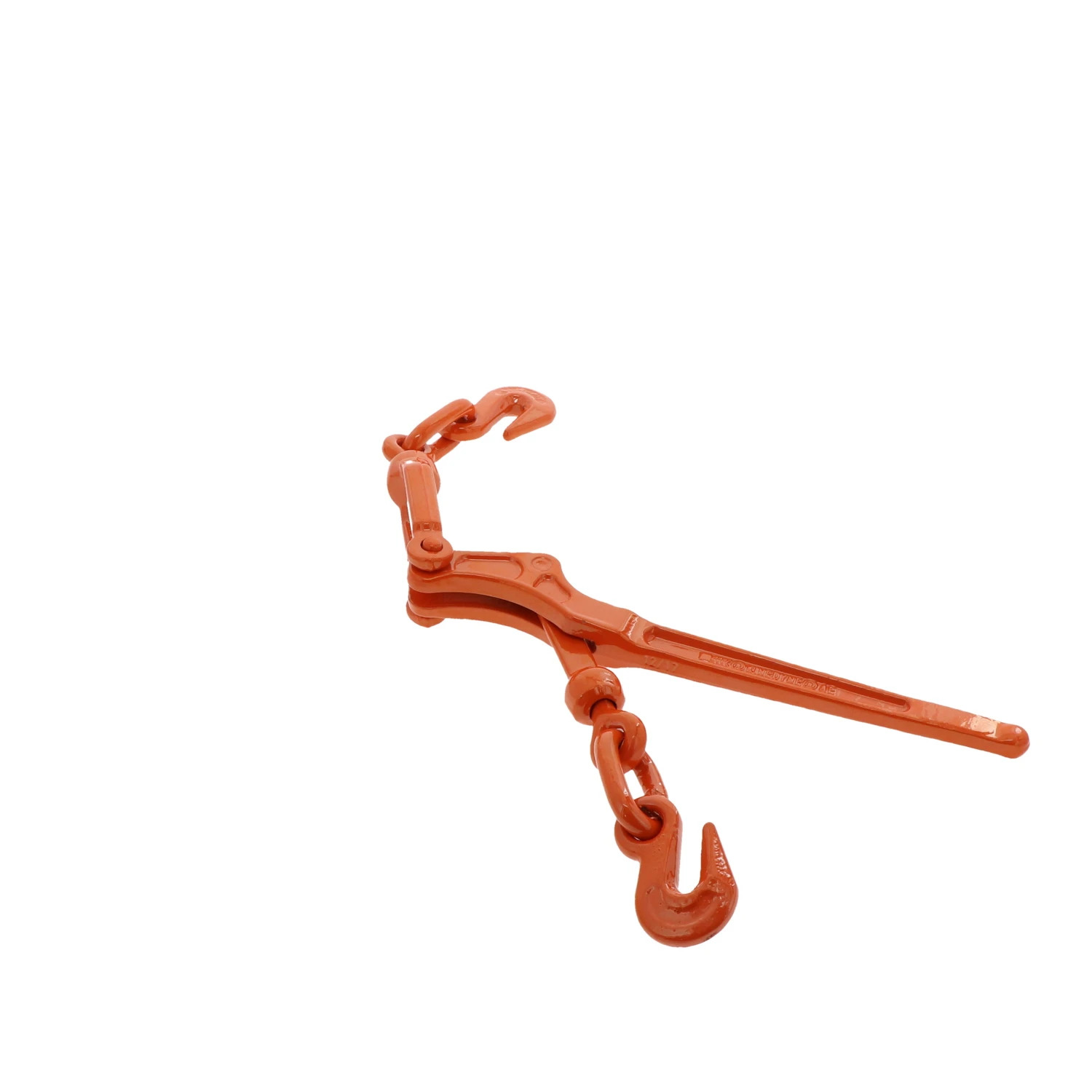

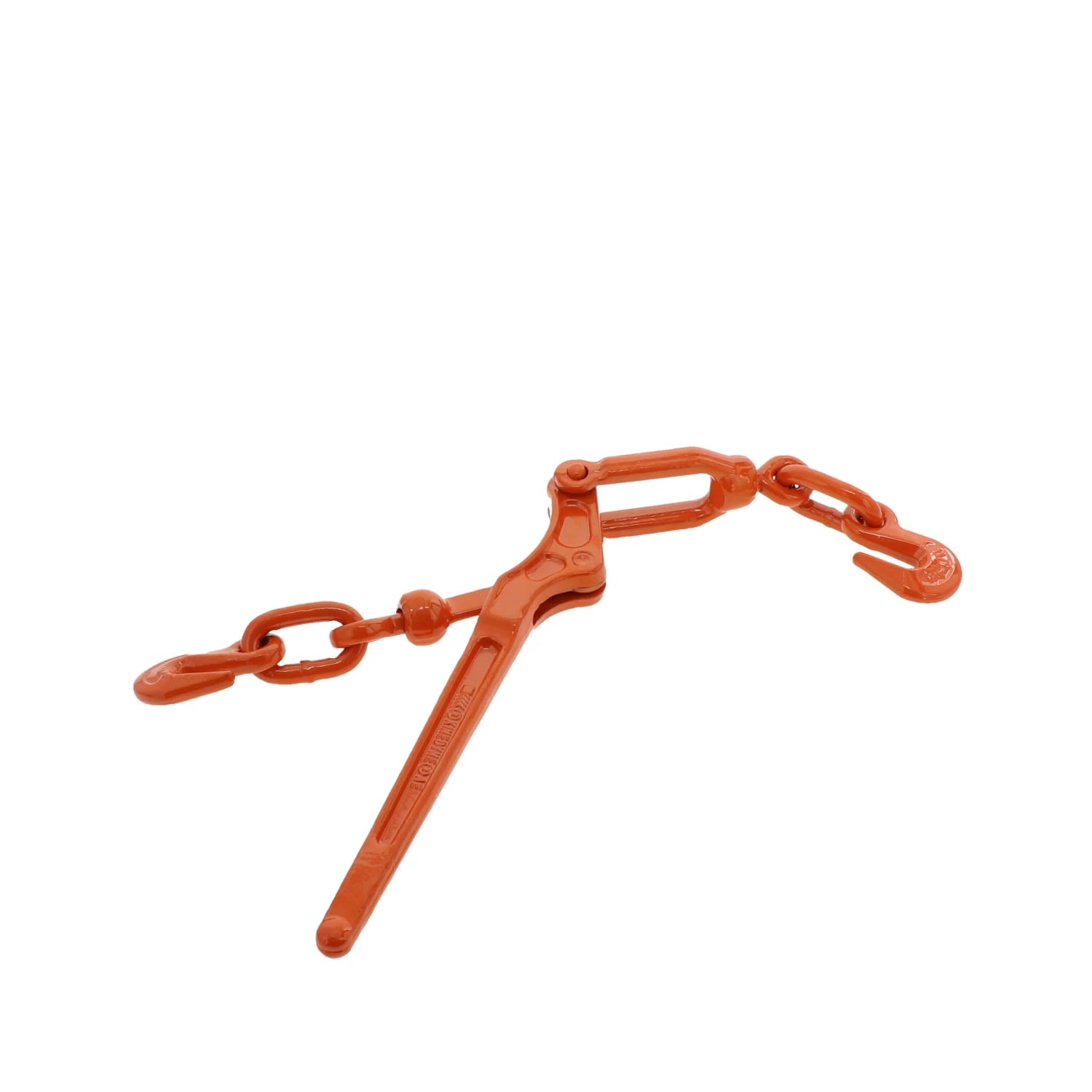

Kinedyne 10046 Regular Lever Chain Binder for 1/4″–5/16″ Chain – 2,600 lb WLL

The Kinedyne 10046 Regular Lever Chain Binder is designed for tightening and securing 1/4″ to 5/16″ transport chains. Its lever-action mechanism provides manual chain tensioning, while the formed steel handle and forged alloy steel clevis grab hooks are built for cargo securement applications.

Rated at 2,600 lb WLL, this binder features a 3″ take-up length and an orange powder-coated finish.

Features

• 2,600 lb WLL: Rated working load limit
• 9,200 lb Breaking Strength: Manufacturer-rated binder breaking strength
• 1/4″–5/16″ Chain Compatibility: Fits compatible transport chains
• Forged Clevis Grab Hooks: Alloy steel hook construction
• Lever-Style Operation: Manual chain tensioning
• 3″ Take-Up: Chain tension adjustment

Specifications

• Product Code: 10046
• UPC: 52474013673
• Brand: Kinedyne
• Product Type: Regular Lever Chain Binder
• Chain Size: 1/4″–5/16″
• Working Load Limit: 2,600 lbs (1,179 kg)
• Binder Breaking Strength: 9,200 lbs
• Hook Breaking Strength: 10,400 lbs
• Hook Type: 5/16″ Clevis Grab
• Handle Material: Formed Steel
• Finish: Orange Powder Coat
• Take-Up Length: 3″
• Length: 18″
• Width: 13″
• Weight: 3.5 lbs
• Specification Met: NACM
