Kinedyne 1023 2″ Flat Delta Ring – 3,335 lb WLL
- Brand: Kinedyne
- Part Number: K1023
$3.37
Shipping can be calculated in the cart or at checkout.
Free Local Pickup available in Brantford, ON
Easy Returns. Quick & Hassle Free
200 In stock, ready to ship from Brantford, ON, Canada.
About this item

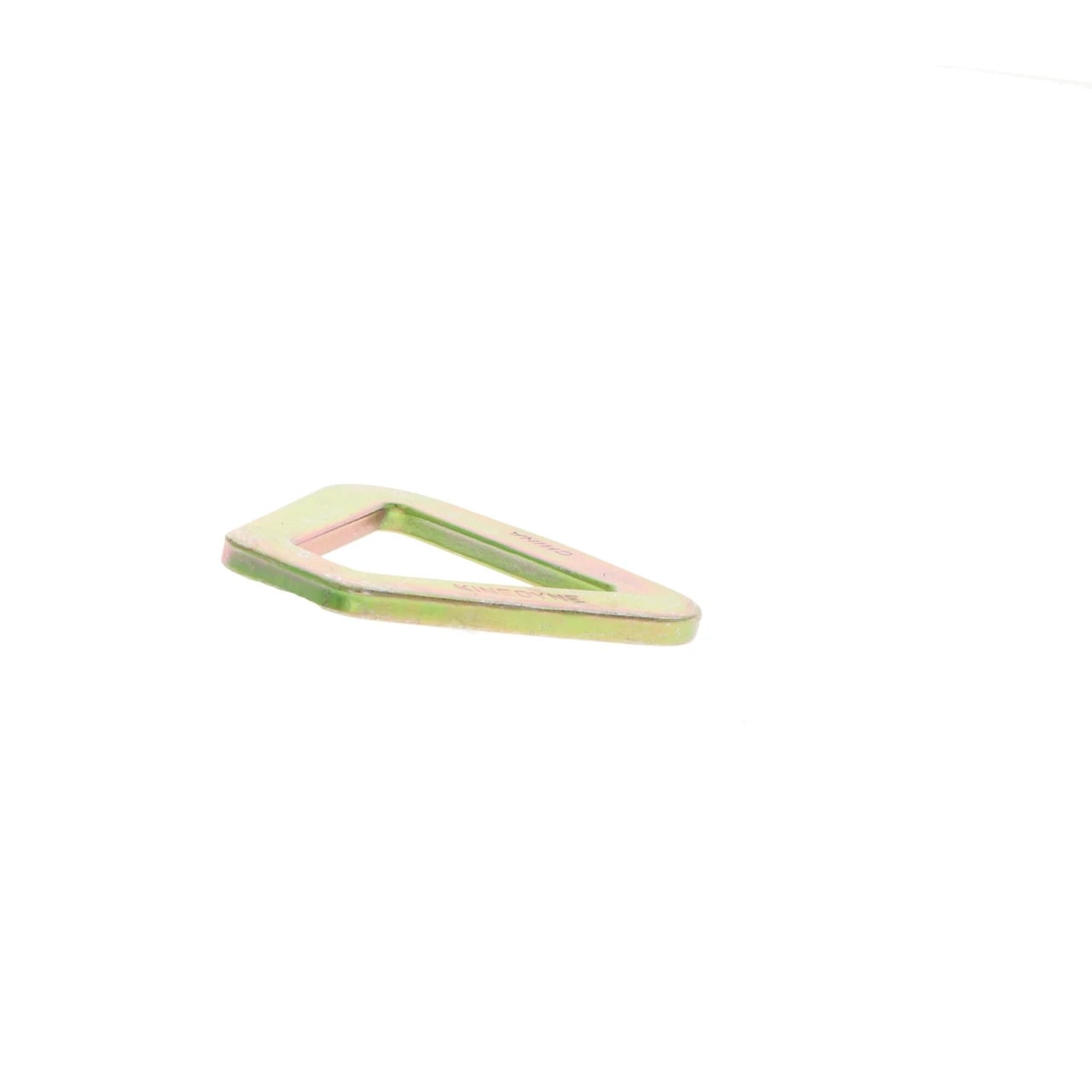

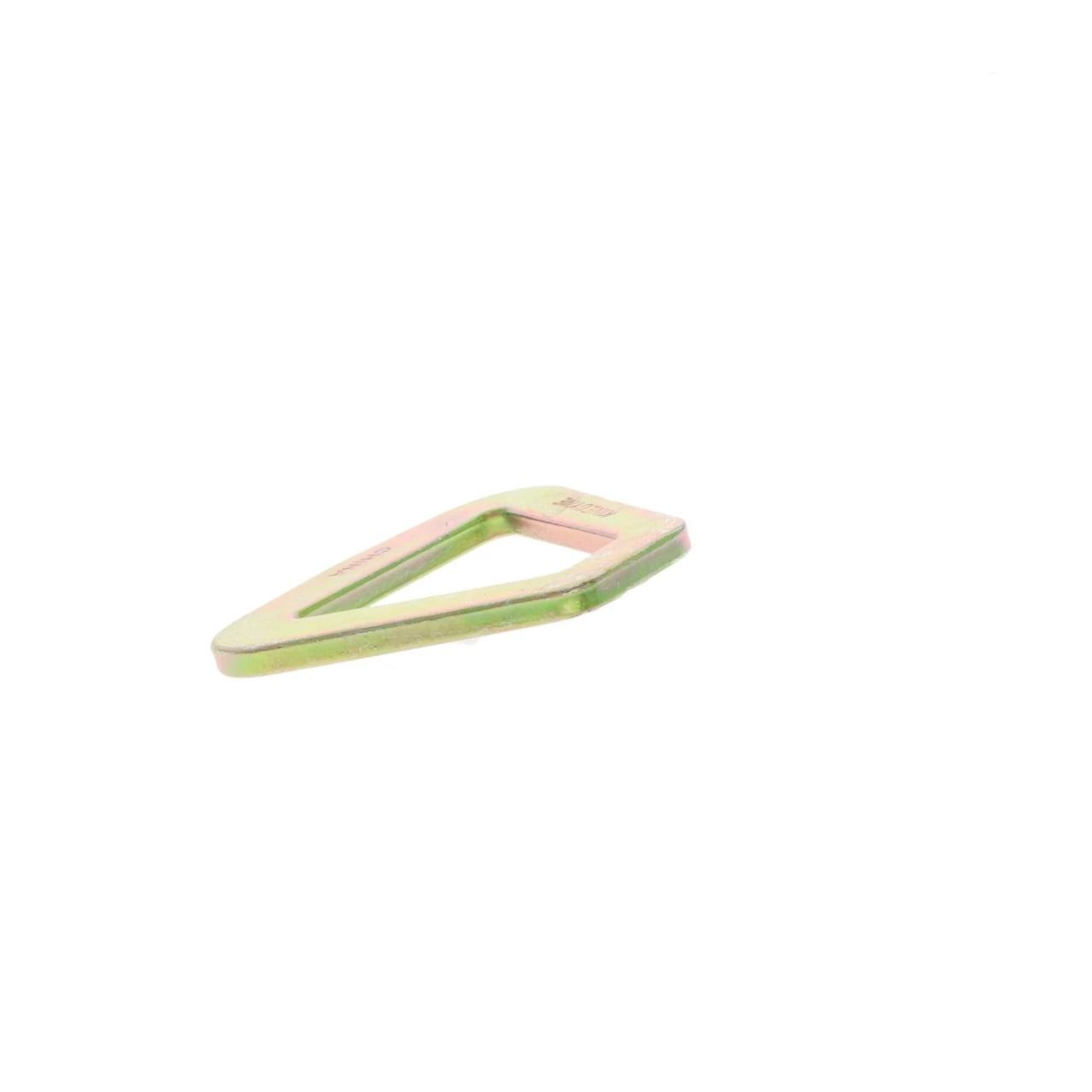

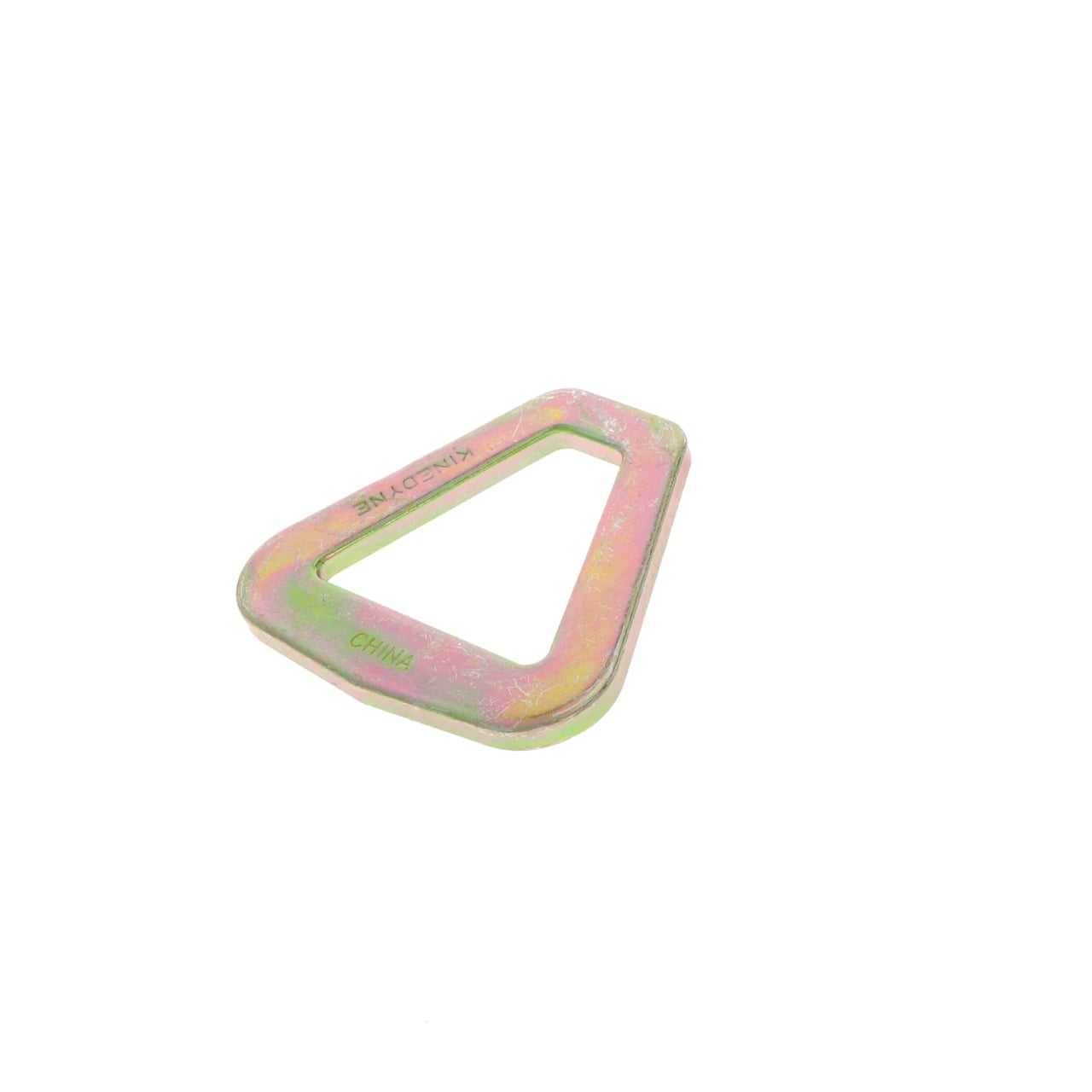

Kinedyne 1023 2″ Flat Delta Ring
- 3,335 lb Working Load Limit (WLL)
- 10,000 lb Breaking Strength
- Fits 2″ tie-down webbing
- Flat Delta Ring design for compatible tie-down hooks
- Heat-treated carbon steel construction
- Corrosion-resistant zinc-plated finish
The Kinedyne 1023 Flat Delta Ring is a heavy-duty end fitting for 2″ ratchet and winch straps. It provides a connection point for compatible cargo tie-down hooks, making it suitable for replacing worn fittings or assembling custom tie-down straps.
Manufactured from heat-treated carbon steel with a zinc-plated finish, the ring features a 3,335 lb WLL and 10,000 lb breaking strength.
Features
- 3,335 lb WLL: Rated working load limit for the ring
- 10,000 lb Breaking Strength: Manufacturer-rated ring strength
- 2″ Webbing Compatibility: 2.13″ webbing slot
- Flat Delta Ring: Connection point for compatible cargo hooks
- Heat-Treated Steel: Durable carbon steel construction
- Zinc-Plated Finish: Helps resist corrosion
Specifications
- Product Code: 1023
- UPC: 52474001298
- Brand: Kinedyne
- Product Type: Flat Delta Ring
- Working Load Limit: 3,335 lbs (1,515 kg)
- Breaking Strength: 10,000 lbs (4,536 kg)

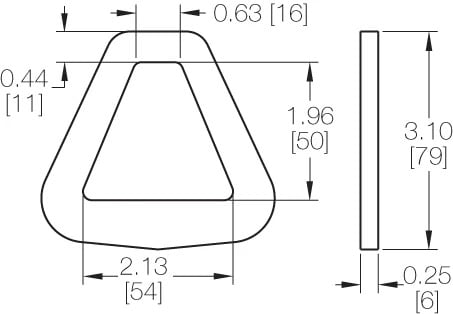

- Compatible Webbing Width: 2″
- Webbing Slot Width: 2.13″
- Webbing Slot Height: 1.96″
- Overall Width: 3.3″
- Overall Height: 3.1″
- Wire Thickness: 0.25″
- Material: Heat-Treated Carbon Steel
- Finish: Zinc Plated
- Color: Gold Chromate
- Weight: 0.32 lbs
- Specification Met: WSTDA-T-1
Product Details
| Weight | 0.3 lbs |
|---|---|
| Packaged Dimensions | 3 × 3 × 1 in |
| Brand | |
| Manufacturer's Part # | 1023 |
| Trison Tarp's Part # | K1023 |
| UPC | 052474001298 |
