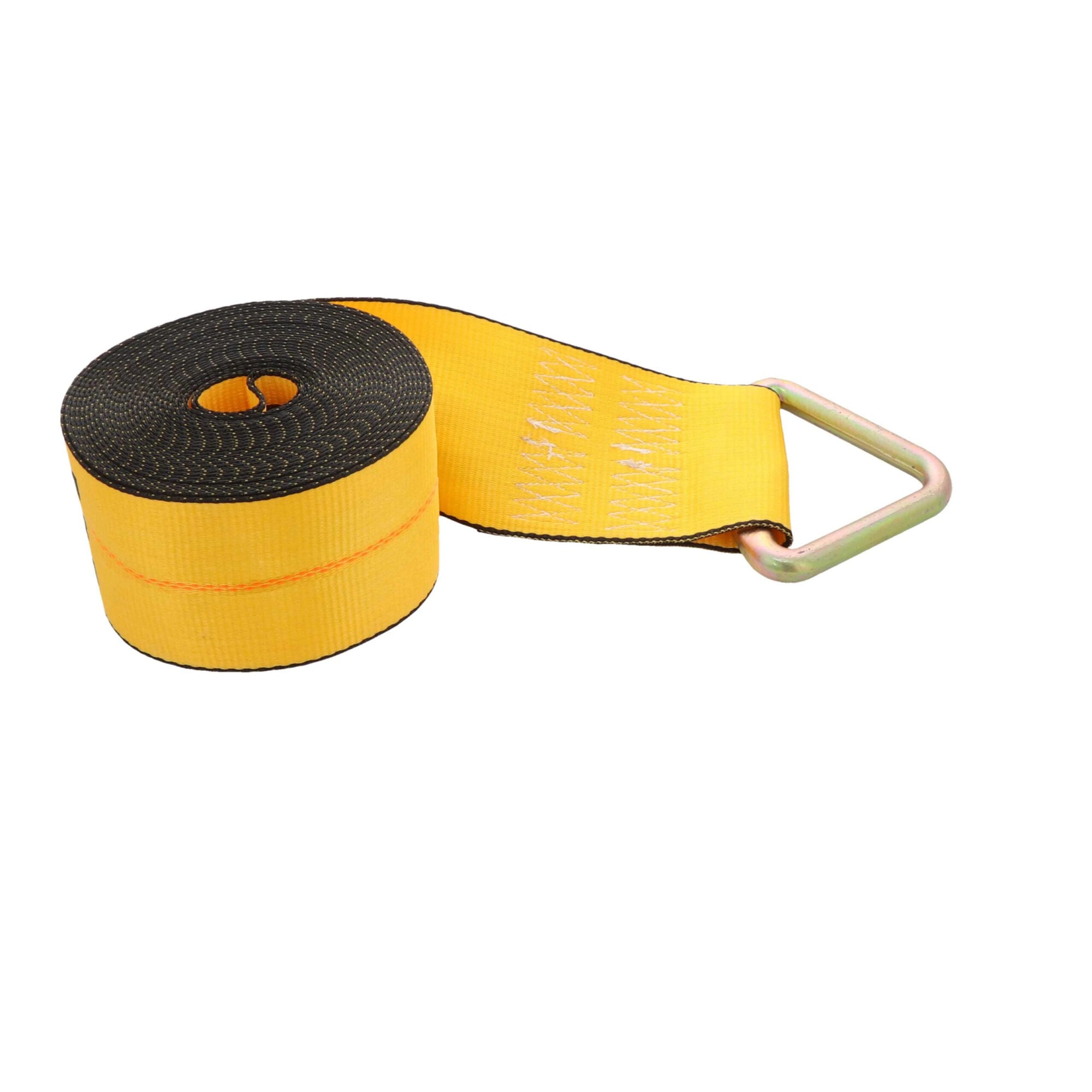

Kinedyne 323025 3″ x 30′ Winch Strap with Delta Ring – 5,400 lb WLL

The Kinedyne 323025 Winch Strap with Delta Ring is designed for securing flatbed cargo using a compatible trailer winch. Its 3″ wide polyester webbing provides a 5,400 lb Working Load Limit and a 16,200 lb assembly breaking strength.

The strap features Kinedyne Gold with Black Edge 3084F polyester webbing and a 1025 Delta Ring made from heat-treated carbon steel with a zinc-plated finish. The Delta Ring provides a connection point for a compatible tie-down hook, while the strap is tightened using a trailer winch.

Features

• 5,400 lb WLL: Working Load Limit for the complete strap assembly
• 16,200 lb Breaking Strength: Rated assembly breaking strength
• 3″ x 30′ Polyester Webbing: Kinedyne 3084F Gold with Black Edge webbing
• 1025 Delta Ring: Heat-treated steel fitting for connecting a compatible tie-down hook
• Zinc-Plated Ring: Provides corrosion resistance
• WSTDA Specification: Meets the manufacturer’s listed WSTDA requirements

Specifications

• Product Code: 323025
• UPC: 52474008273
• Brand: Kinedyne
• Product Type: Delta Ring Winch Strap
• Width: 3″
• Length: 30′
• Working Load Limit: 5,400 lbs (2,450 kg)
• Assembly Breaking Strength: 16,200 lbs (7,348 kg)
• Webbing: Kinedyne Gold with Black Edge 3084F
• Webbing Material: Polyester
• End Fitting: Kinedyne 1025 Delta Ring
• End Fitting Material: Heat-Treated Carbon Steel
• End Fitting Finish: Zinc Plated
• Weight: 4.12 lbs
• Specification Met: WSTDA
