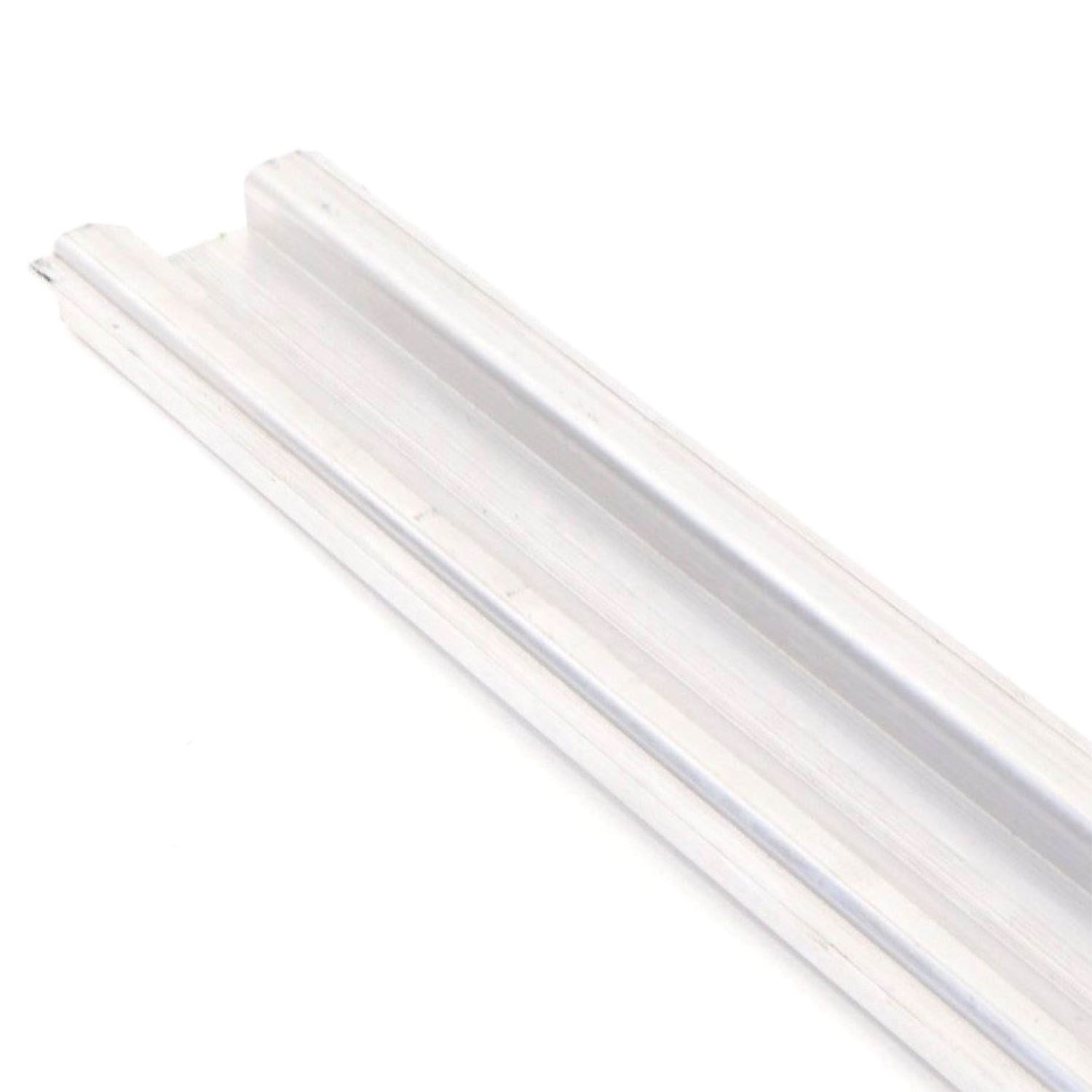

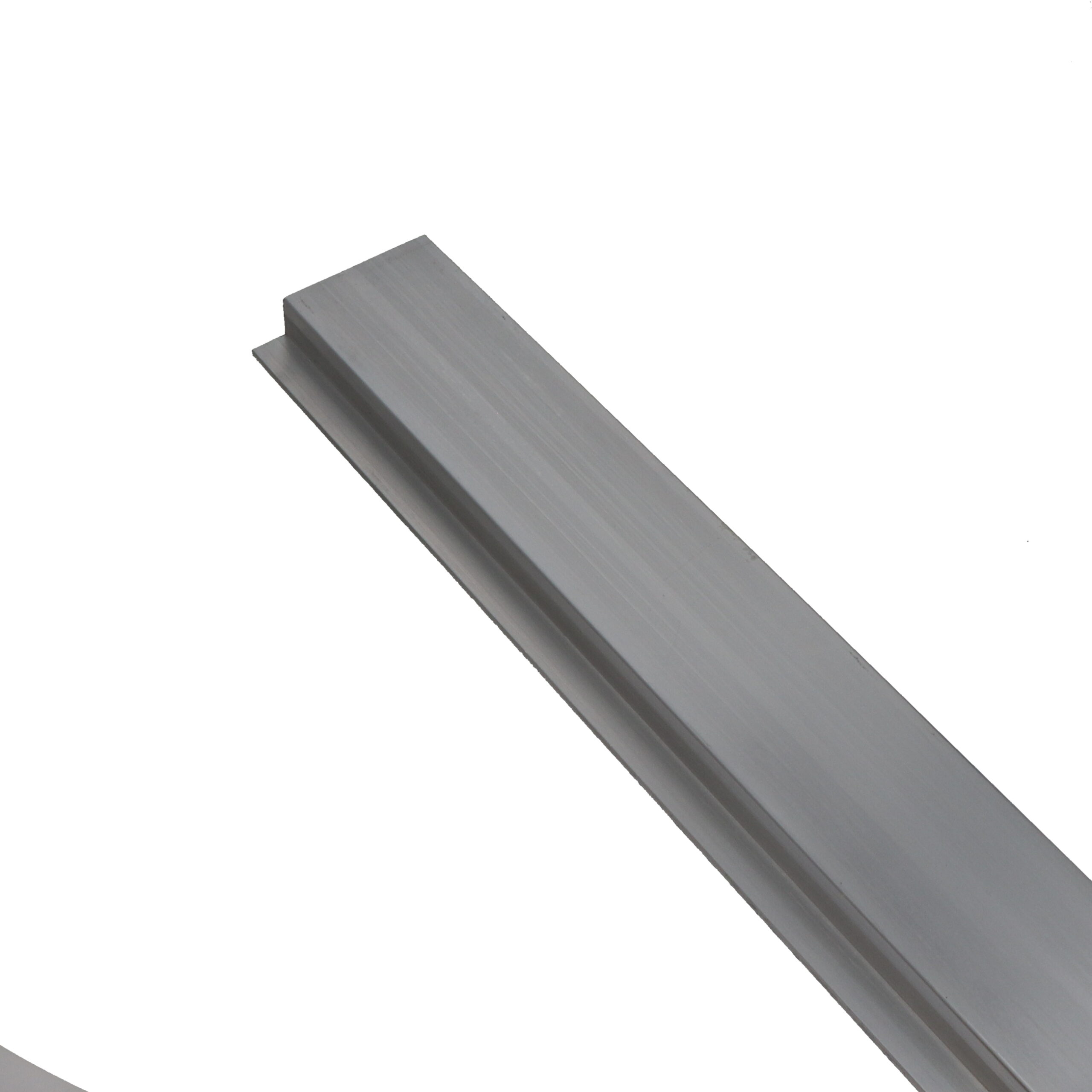

Kinedyne 3608 Aluminum Double L Winch Track

The Kinedyne 3608 Aluminum Double L Winch Track is a bolt-on, aluminum winch track designed for use with Kinedyne Double L (double-bracket) sliding winches. Its 10-foot aluminum profile offers a balance of strength and reduced weight, making it suitable for a wide range of trailer and truck securement setups.

The track provides a smooth surface for winch movement and is engineered to hold the winch securely once tension is applied. Installation is straightforward: align the track with your cross members, drill and countersink as needed, then fasten it in place using cap screws, washers, and nuts.

Product Overview:

• Bolt-on aluminum winch track for double-bracket (Double L) sliding winches
• Lightweight, corrosion-resistant construction
• Smooth track surface for consistent winch operation
• Holds winches firmly under tension
• Suitable for mounting along trailer or truck side rails
• Simple installation with standard drilling and fastening steps

Specifications

• Width: 3.02 in
• Length: 10 ft
• Weight: 18.95 lbs (8.60 kg)
• Thickness: 0.31 in
• Used With: Double L Winches

Download PDF:

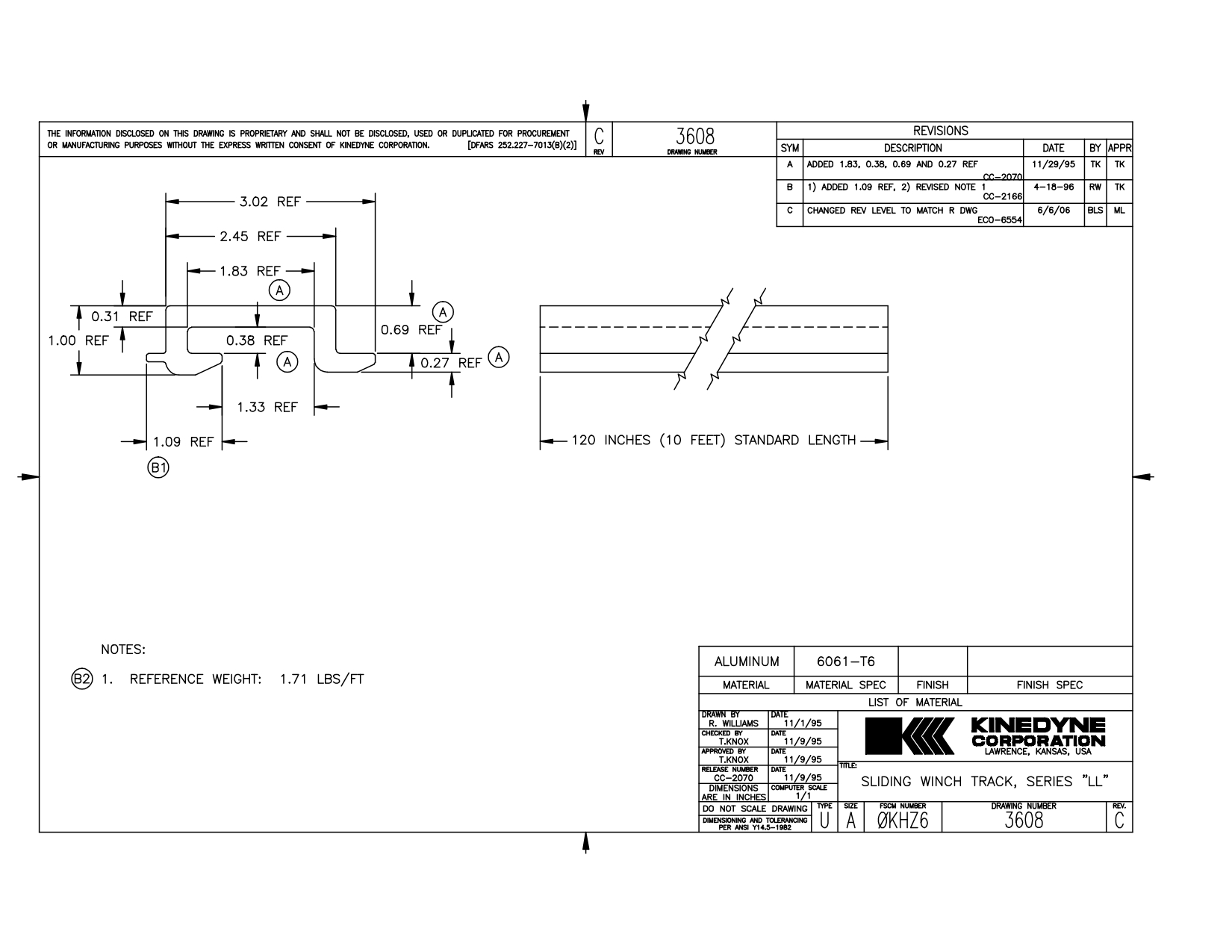

• Kinedyne 3608 Winch Track – Specs & Dimensions
