Roll Rite 49709 TORC Passenger Side Pivot Assembly

The Roll Rite 49709 TORC Passenger Side Pivot Assembly is a complete passenger-side pivot assembly for Roll Rite DC Series tarp systems using the newer TORC™ pivot design. It includes the TORC pivot, 72″ passenger-side pivot tube receiver, cable and gas spring assembly, mounting hardware, and rubber cap.

Roll Rite’s TORC  design uses a gas spring to maintain arm tension throughout the tarping cycle. The TORC pivot design is used with the newer DC800/DC850 generation that replaced the older DC350 system.

Key Features

• Genuine Roll Rite TORC pivot assembly
• Passenger-side configuration
• Used with the newer DC800/DC850 TORC pivot design
• Includes 72″ passenger-side pivot tube receiver
• Includes cable and gas spring assembly
• Mounting hardware and rubber cap included
• Complete passenger-side assembly

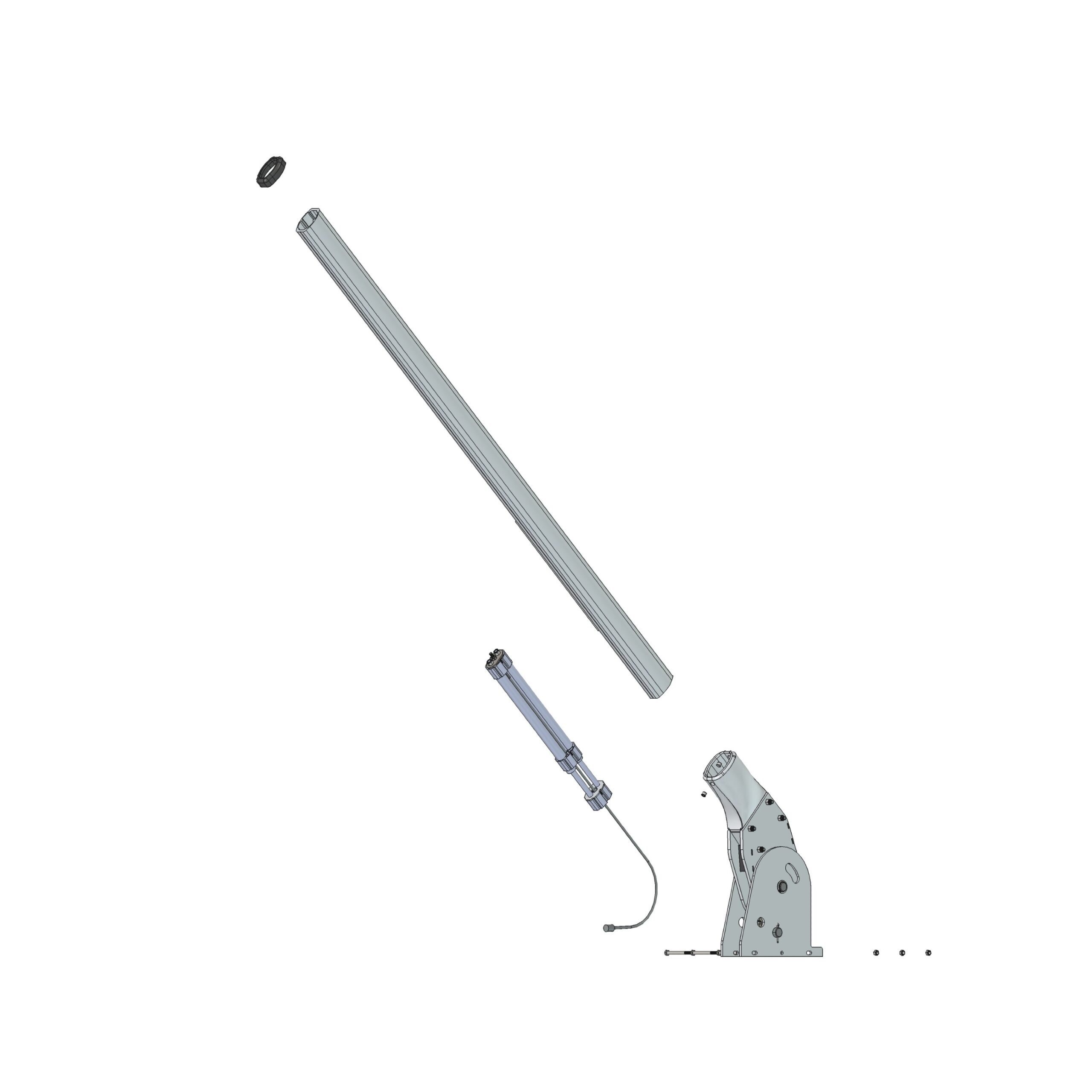

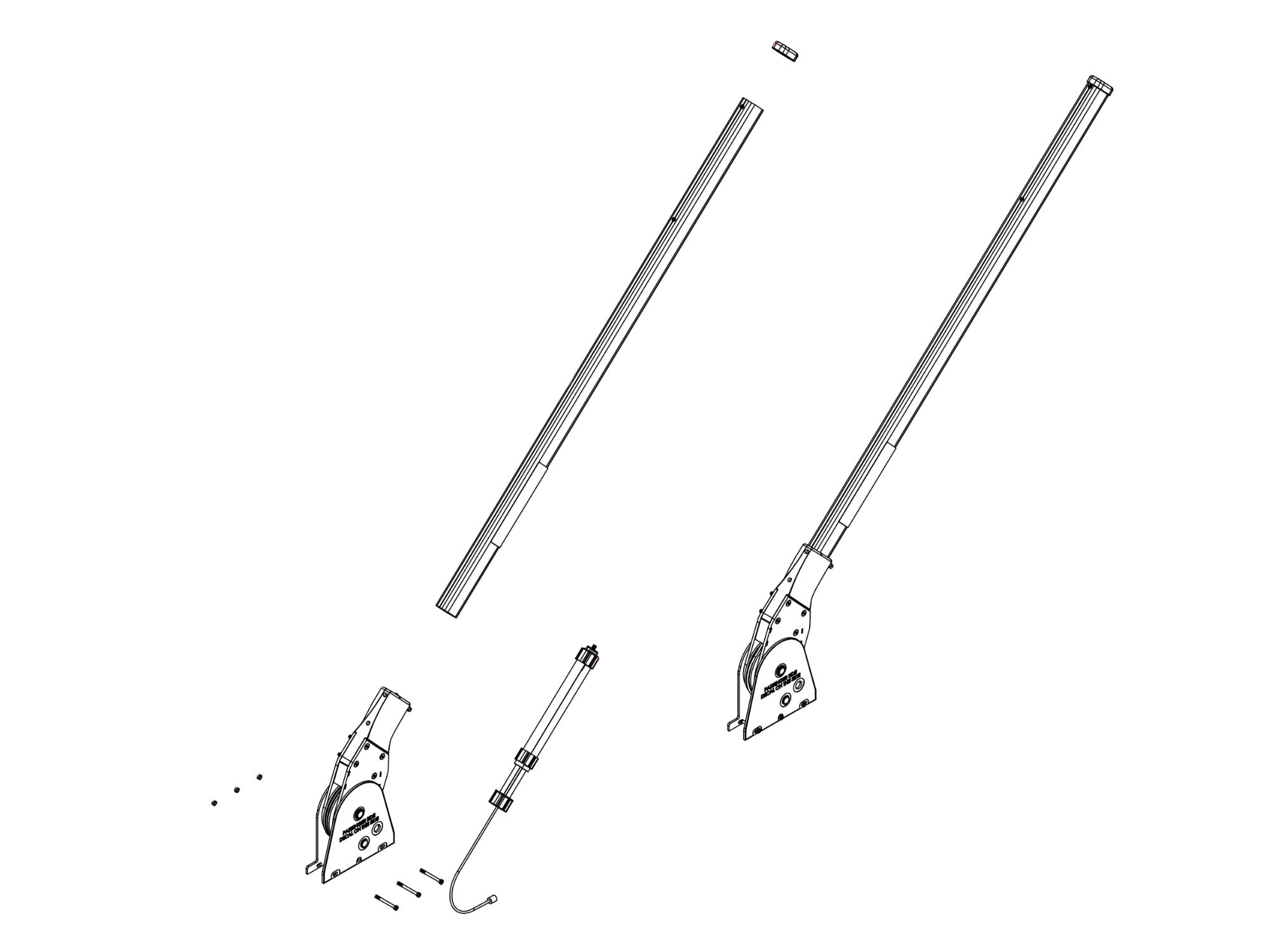

What’s Included

• 49707 – 72″ Passenger Pivot Tube Receiver with set screws and decal
• 49703 – 8″ Cam Pivot Assembly
• 49705 – Cable and Gas Spring Assembly
• 18223 – 5/16″ × 3-1/2″ Hex Head Bolt – Qty. 3
• 18613 – 5/16″ Nylock Nut – Qty. 3
• 109156 – Socket Tube Rubber Cap – Qty. 1 49709

DC350 Upgrade Note

If you have an older Roll Rite DC350 with the previous pivot configuration and are upgrading to the newer TORC design, use the Roll Rite 49715 TORC Pivot Upgrade Kit. The 49715 includes both the 49709 passenger-side and 49710 driver-side TORC pivot assemblies.
