Roll Rite 49710 TORC Driver Side Pivot Assembly

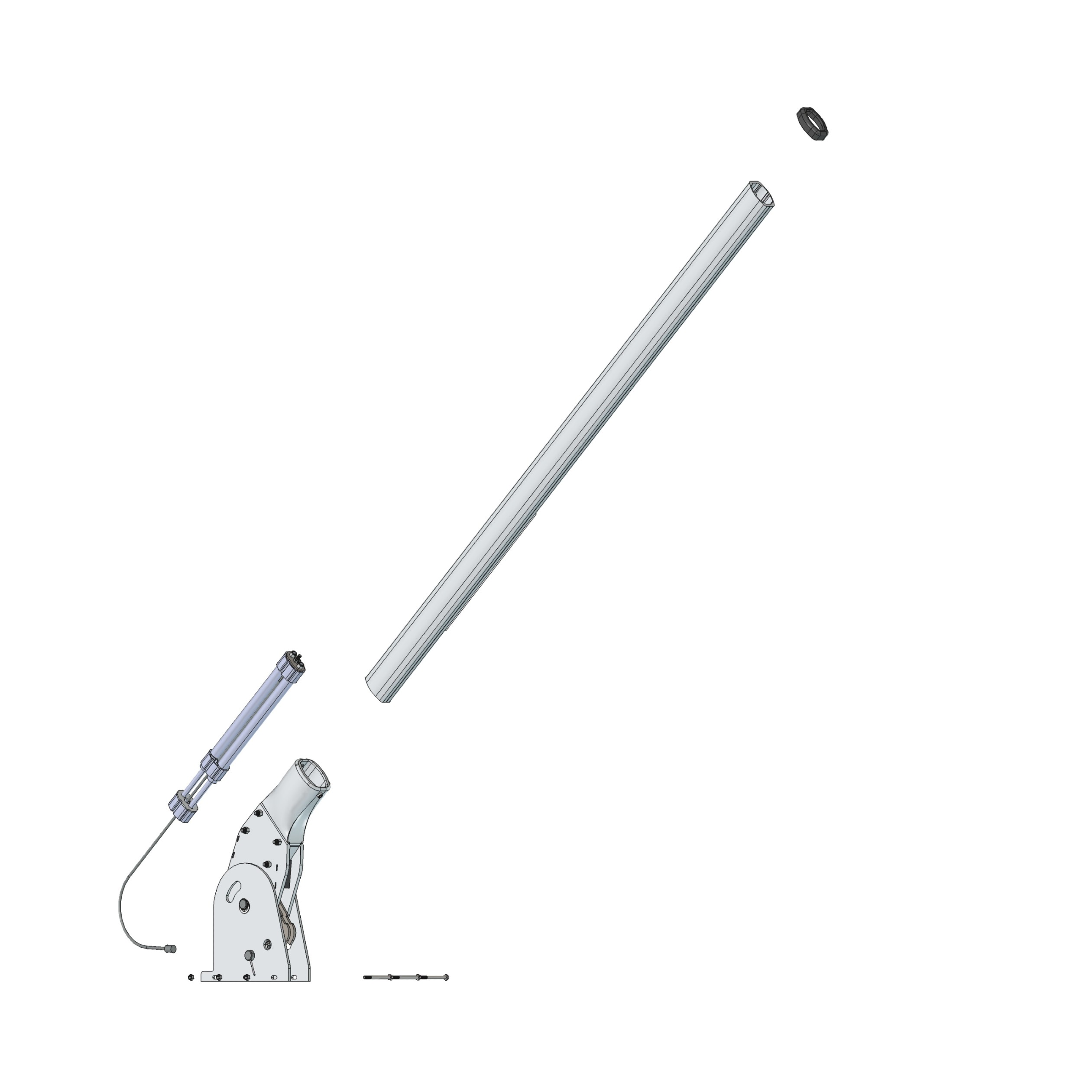

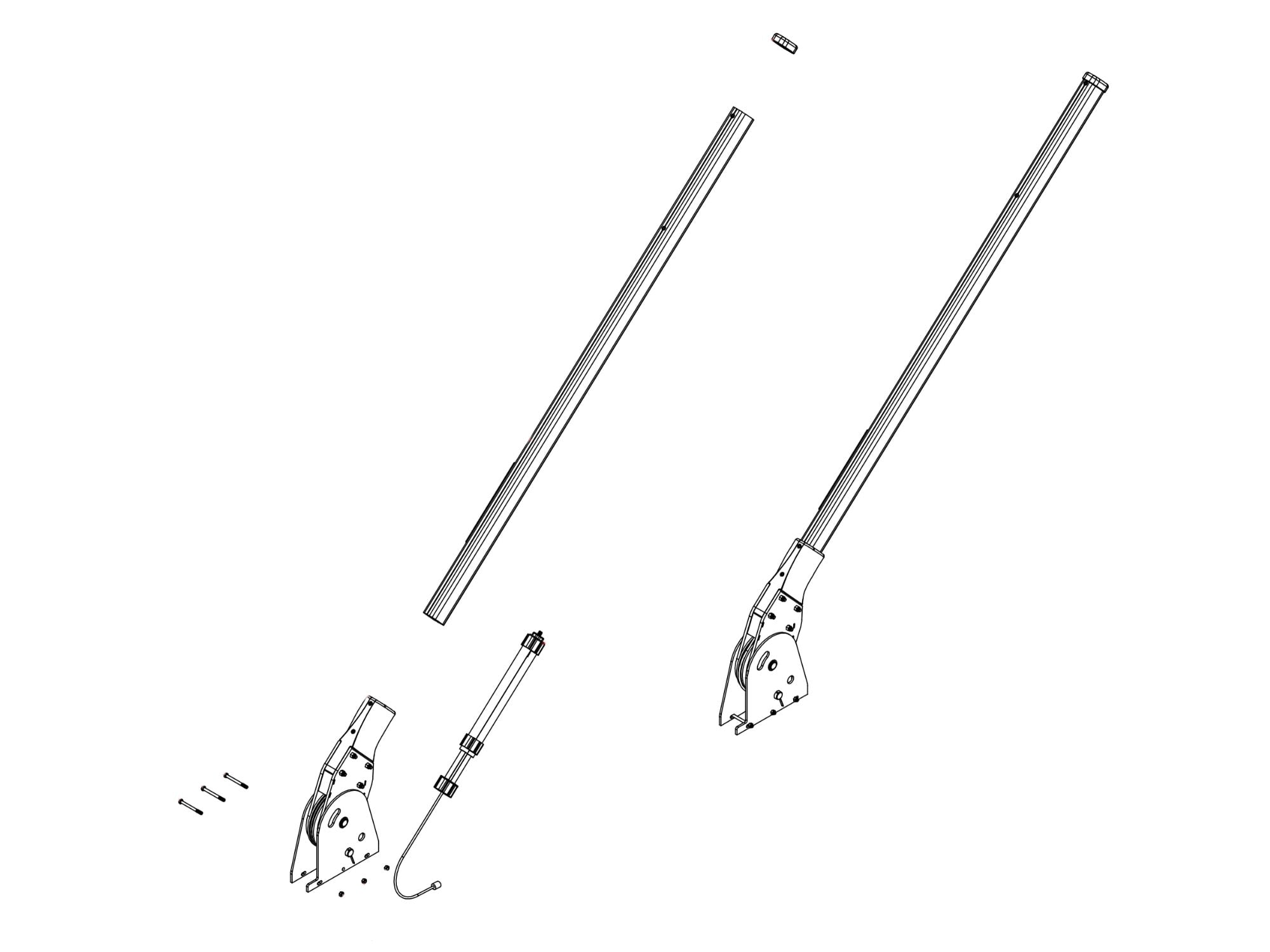

The Roll Rite 49710 TORC Driver Side Pivot Assembly is a complete driver-side pivot assembly for Roll Rite DC Series tarp systems using the newer TORC™ pivot design. It includes the TORC pivot, 72″ driver-side pivot tube receiver, cable and gas spring assembly, mounting hardware, and rubber cap.

Roll Rite’s TORC design uses a gas spring to maintain arm tension throughout the tarping cycle. The TORC pivot design is used with the newer DC800/DC850 generation that replaced the older DC350 system.

Key Features

• Genuine Roll Rite TORC pivot assembly
• Driver-side configuration
• Used with the newer DC800/DC850 TORC pivot design
• Includes 72″ driver-side pivot tube receiver
• Includes cable and gas spring assembly
• Mounting hardware and rubber cap included
• Complete driver-side assembly

What’s Included

• 49704 – TORC Pivot Assembly, Driver
• 49705 – Cable and Gas Spring Assembly
• 49708 – 72″ Driver Pivot Tube Receiver with set screws and decal
• 18613 – 5/16″ Nylock Nut – Qty. 3
• 91247A597 – 5/16″ × 3-1/2″ Hex Head Bolt – Qty. 3
• 109156 – Socket Tube Rubber Cap – Qty. 1

DC350 Upgrade Note

If you have an older Roll Rite DC350 with the previous pivot configuration and are upgrading to the newer TORC design, use the Roll Rite 49715 TORC Pivot Upgrade Kit. The 49715 includes both the 49709 passenger-side and 49710 driver-side TORC pivot assemblies.
